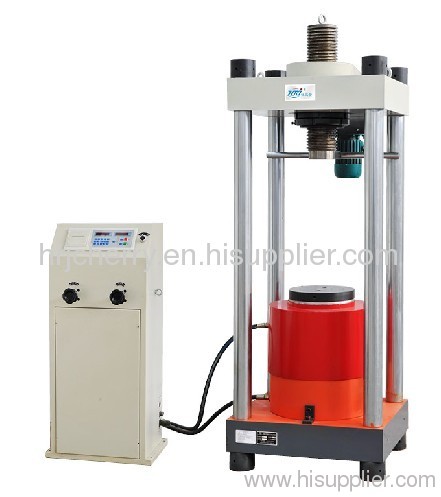

YES-2000B/3000B Digital Display Concrete Compression Testing Machine

1.     Functions &applications:

1)       Adopting manual control, hydraulic loading, electronic measurement, computer display and data auto processing, it can perform compression test for metallic and nonmetallic materials;

2)      Controlled by oil inlet and oil outlet valves, easy for operation, with attractive appearance;

3)       Four columns, underneath type oil cylinder, easy for installation, with good stability;

4)       With reserved interface for connection with internet or computer, used for upgrading;

5)       Equipped with accessories, it can perform compression tests for other materials.

2.Main technical parameters:

1) Max. test force (KN):3000

2) Measuring range of test force: 2%-100%FS

3) Accuracy of indicating value: within 1%

4) Max. Compression space (mm):0-350

5) Distance between two columns (L*W) mm: 500*400

6) Diameter of spherical upper platen (mm):300

7) Size of square lower platen (mm):400*400

8) Max. stroke of piston (mm):150

9) Loading rate 0-40KN/s, adjustable

10) Dimension of main machine (L*W*H) mm: 700*600*1800

11) Dimension of control cabinet (mm):570*480*1230

12) Weight (kg): About 1200
